Handy mini
Price : US$690.00 FOB JAPANMade in Japan
(1) Super Slim Head CCD Camera :φ7.5mm × 42mm
(2) 1/7 inch, 340,000 pixels, color CCD, clear and high-resolution picture.
(3) Video Output signal is NTSC.

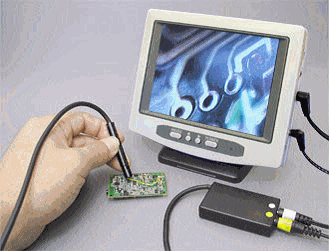

■ Examples of use
|
|
1. Use as microscope or magnifying glass.
Research & Development office.
Designing & Engineering office.
Factory（Production line, QA/IQC office）
2.Use for scurity Camera.
3. Use for component of product.
|

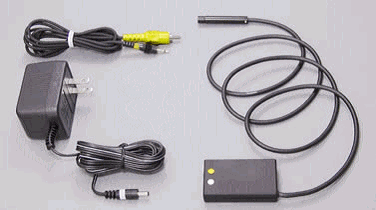

■ Components
1.CCD Camera with Controller.
2.AV Cable.
3.AC Adapter(O/P:12VDC):Japanese specifications Adapter
|
■ How to use
１．Connect the AV Cable to Monitor(NTSC).
If you would like to connect with personal computer, you can use a
USB video capture adapter supplied on the market.
２．Focus adjustment ：Turning the lens of CCD head.
|

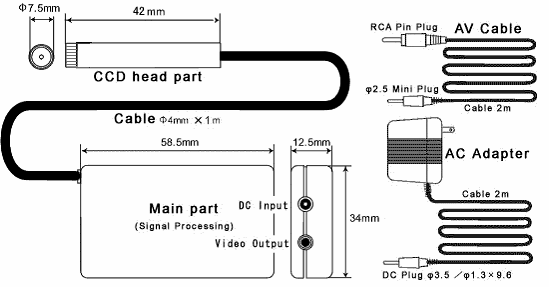

■ Appearance Size
AC Adapter(O/P:12VDC) : Japanese specifications Adapter
|
■ Specification
| Sensor |
1 / 7 inch CCD |
| IR Cut Filter |
Attached |
| Indication Pixels |
340,000 pixels |
| Pixel Pitch |
4.52 μｍ×4.52 μｍ |
| Scanning Mode |
2：1 Interlace |
| Video Output Signal |
NTSC Composite Video |
| Field Angle |
51°（Level）, 39°（Perpendicular） |
| Focal Distance |
f =2.1mm |
| Brightness |
F = 2.9 |
| Material |
Head ：Aluminum、Mai Controller ：ABS |
| Cable Length |
１m |
| Cable Diameter |
4mm |
| Weight |
60g (Without A/C Adapter) |
| Operating Temperature/Humidity |
0〜40℃ / 20〜80％RH (Without Dew Condensation)
|
| Power Supply |
DC12V |
| Input Current |
110mA |
| Focus adjustment |
Turning the lens of CCD head.
Working Distance : About 20mm 〜 Infinite distance |
| Working Distance and Field Range |
| Working Distance(mm) |
Field Range |
| H(mm) |
L(mm) |
| 5 |
2.6 |
3.4 |
| 10 |
6.7 |
9.0 |
| 20 |
12 |
16 |
| 40 |
25 |
33 |
| 80 |
52 |
69 |
| 150 |
98 |
130 |

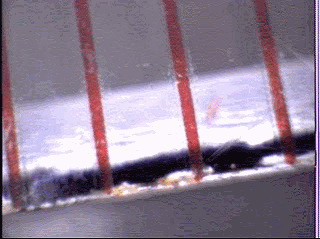

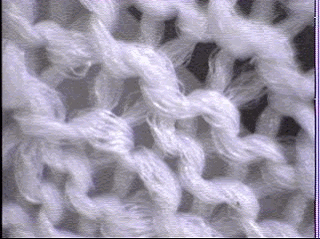

| Image ｓample by Handy mini |
Speaker net |
Scale 1mm |
■ Options

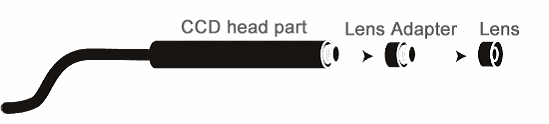

（１）Lens Adapter(4 adapters/per set) for higher magnification.
Price ：US$52.00/set(4 pcs) FOB JAPAN
Made in Japan |
Magnification by Monitor Size and Lens Adapters (Reference Data）
| Adapter |
Magnification by Monitor Size and Lens Adapters |
Field Range
L×W
ｍｍ
|
Working Distance
mm
|
| 5 inch |
12 inch |
14 inch |
19 inch |
21 inch |
| 1 pc |
25 |
60 |
70 |
95 |
105 |
3.4×4.0 |
3 |
| 2 pcs |
60 |
144 |
168 |
228 |
252 |
1.2×1.6 |
2 |
| 3 pcs |
115 |
276 |
322 |
437 |
483 |
0.6×0.8 |
1.5 |
（２）Telephotographic Lens CCN-OP-TL10
Picture of Telephotographic Lens + Lens Adapter. |
＜ Image ＞
Gray Color : Image of Standard Lens ( 51°)
Red Color：Image of Telephotographic Lens |
Price ：US$320.00 FOB JAPAN
Made in Japan
Specification
| Focal Distance |
ｆ＝12 |
| Brightness |
Ｆ＝2.7 |
| Field Angle |
10°（Level）, 7°（Perpendicular） |
| Diameter |
7.5mm |
| Length |
13.5mm |
| Operating Temperature |
0〜40℃ |
|
Magnification by Monitor Size and Lens Adapters (Reference Data）
| Adapter |
Magnification by Monitor Size and Lens Adapters |
Field Range
L×W
ｍｍ |
Working Distance
ｍｍ |
| 5 inch |
12 inch |
14 inch |
19 inch |
21 inch |
| 1 pc |
9 |
21 |
25 |
34 |
38 |
8.4×11.2 |
80 |
| 2 pcs |
18 |
43 |
50 |
68 |
75 |
4.2×5.6 |
45 |
| 3 pcs |
28 |
67 |
78 |
106 |
117 |
2.7×3.6 |
33 |
Combination with Telephotographic Lens and Lens Adapters
It can take Magnification with long distance as follows.
（３）Wide Angle Lens CCN-OP-WL72
Picture of Wide Angle Lens + Lens Adapter. |
＜Image＞
Gray Color : Image of Standard Lens ( 51°)
Red Color：Image of Wide Angle Lens |
Price ：US$320.00 FOB JAPAN
Made in Japan
Specification
| Focal Distance |
ｆ＝2 |
| Brightness |
Ｆ＝3.0 |
| Field Angle |
72°（Level）, 54°（Perpendicular） |
| Diameter(Max.) |
14mm |
| Length |
22 mm |
| Operating Temperature |
0〜40℃ |
Used for surveillance camera, observation camera and photography camera
for prototype etc..
|
|
（4） USB Video Capture
If you would like to connect the CCD Camera with P/C, you can use this
USB video capture.
New product.
 |
Price ：US$295.00 FOB JAPAN
Made in Japan
Specification
| Video input signal |
NTSC/PAL |
| Power input |
From USB port |
| I/F(interface) |
USB2.0 based |
| Frame rate |
VGA(640Hx480V)30frame/second |
| Dimension |
37x57x23mm |
| Operating environment |
Pentium4 1.7GHz
（recmendation 2.0AGHz )
PentiumM 1.7GHz
Memory: 256MB
OS: Windows XP Vista
|
| Attached soft |
USB driver |
| Attached USB cable |
cable length 500mm |
■ Lineup Products
（１） Long Cable Model :
CCN3412Y-3M
Price ：US$990.00 FOB JAPAN
Lead time : 1 week
Made in Japan
|
Cable length 3m model
Head Diameter： 7.5mm
Head Length ： 42mm
|
（２） Ultra Long Cable Model: 12m
CCN3412Y-12M
Price ：US$3,200.00 FOB JAPAN
Lead time : 1.5 -2 month
Made in Japan
|
Cable length ： 12m model
Head Diameter： 7.5mm
Head Length ： 42mm
|
（３） Side View Modeｌ: With light
CCN3412YS
Price ：US$980.00 FOB JAPAN
Lead time : 1 week
Made in Japan
|
Thin head 8mm model
LED light
（４ｐｃｓ chipp LED)
On/Off,Low, Hi
Head size:
8(Thickness)×12(W)×40(L)mm
Cable length ：１
Focus : manual
20〜infinite distance
Option :Lens adapter for higher
magnification
（Refer Option of Handy mini）
Main controller size :
58.5(L)×34(W)×12.5(H)mm
Basic specifications are same as Handy mini
340,000 pixels
1 / 7 inch CCD
NTSC Composite Video
|
（４） Waterproof Model: With light
12m Cable
CCN3412YWL-12M
Price ：US$3,800.00 FOB JAPAN
Lead time ： 2 months
Made in Japan |
Small diameter 12mmhead
Waterｐroof
LED light
（１２ｐｃｓ chipp LED)
Cable length 12m
Head size :
Diameter 12mm, Length 52ｍｍ
Focus : fixed
50mm〜infinite distance fixed
Waterproof :
Within 2-3 hours in water.
Wipe water off after use.
Main controller size :
58.5(L)×34(W)×12.5(H)mm
Basic specifications are same as
Handy mini
340,000 pixels
1 / 7 inch CCD
NTSC Composite Video
|
■ Monitor

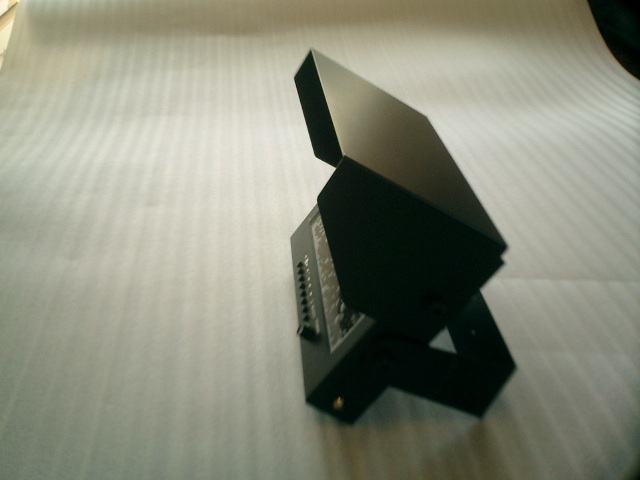

7 inch TFT Monitor
7 inch
Price ：US$670.00 FOB JAPAN
Made in Taiwan
＜Specification＞
Video input signal ：NTSC/PAL
Resolution：: 800(W)x400(H)pixels
Brightness：220cd/m2
Opration Voltage： DC12V
Dimension：182(W)ｘ133(H)ｘ35(D)
Weight：2kg
Function：Brightness, Contrast, Saturation and Hue
Video In terminal : １(BNC and RCA)
S-Video In terminal :1(Mini Din)
Video Out terminal : 1(BNC and RCA)
AC Adapter :In:AC100V〜AC240Ｖ
Out:DC12V , 1.5A
Safety standard : UL, PSE
|
|
|
