Handy α
Price : US$1,200.00 FOB JAPAN
      Made in Japan

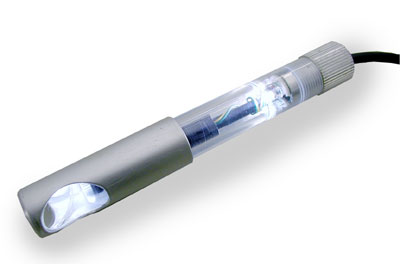

(1) The special model with lighting :φ14mm × 100mm(excluded control parts)
(2) Using 1/7 inch, 340,000 pixels, color CCD, you can see high-definition, high-resolution picture.
(3) Video Output signal is NTSC. Connection with common television is possible by the attached AV cable.

Examples of use

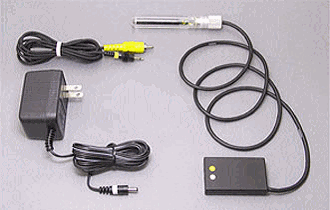

■ Components

1.CCD Camera with Controller.
2.AV Cable.
3.AC Adapter(I/P:100V〜240VAC,O/P:12VDC) : Japanese specifications

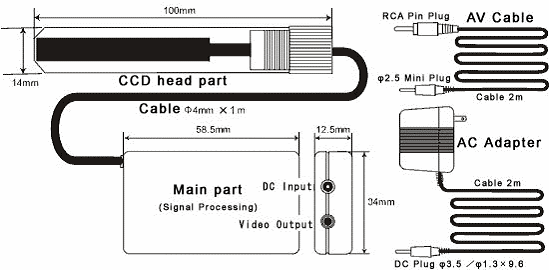

Appearance, Size

AC Adapter : Japanese specifications

■ Specification
Sensor   1 / 7 inch CCD
IR Cut Filter   Attached
Indication Pixels   340,000 pixels
Pixel Pitch   4.52 μm×4.52 μm
Scanning Mode   2:1 Interlace
Video Output Signal   NTSC Composite Video
Field Angle   51°(Level), 39°(Perpendicular)
Focal Distance   f =2.1mm
Brightness F = 2.9
Material CCD  :Camera Cover:Aluminum、Controller Cover:ABS
Cable Length   1m
Cable Diameter   :4mm
Weight 60g (Without A/C Adapter)
Operating Temperature/Humidity   :0〜40℃ / 20〜80%RH (Without Dew  Condensation)
Power Supply   DC12V
Input Current   110mA

About use
(1)Close-up and magnification use
    Working distance:
        Standard lens :20mm〜
        With Lens Adapter(option):1.5〜3mm


  Image sample by Handy α
eye

■ Options

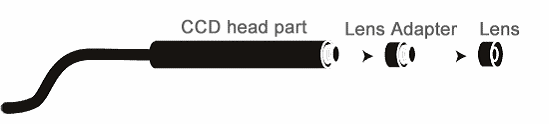

(1)Lens Adapter(4 adapters/per set) for higher magnification.


Price :US$52.00/set(4 pcs) FOB JAPAN
      Made in Japan
Magnification by Monitor Size and Lens Adapters
Adapter Magnification by Monitor Size and Lens Adapters Field Range
L×W
mm
Field Range
L×W
mm
5 inch 12 inch 14 inch 19 inch 21inch
1 pc 25 60 70 95 105 3.4×4.0 3mm
2 pcs 60 144 168 228 252 1.2×1.6 2mm
3 pcs 115 276 322 437 483 1.2×1.6 1.5mm

(2) Side-View Attachment
ハンディα CCN3412L 側視アダプター

Price : US$220.00 FOB JAPAN
      Made in Japan

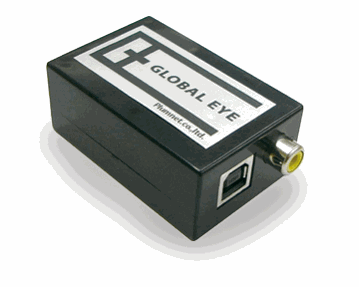

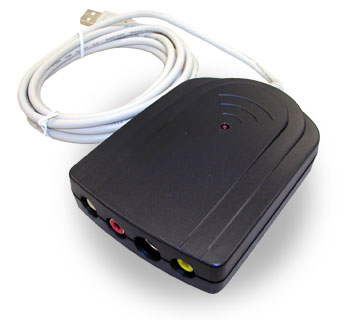

(3) USB Video Capture
If you would like to connect the CCD Camera with P/C, you can use this USB video capture.


Price :US$360.00 FOB JAPAN
      Made in Japan
Specification
Video input signal NTSC/PAL
Power input From USB port
I/F(interface) USB2.0 based
Frame rate VGA(640Hx480V)30frame/second
Dimension 37x57x23mm,
Operating environment ・Pentium4 1.7GHz
 (recmendation 2.0AGHz )
・PentiumM 1.7GHz
・Memory: 256MB
・OS: Windows XP Vista
Attached soft USB driver
Attached USB cable cable length 500mm

(4)7 inch TFT Monitor
        7 inch


Price :US$670.00 FOB JAPAN
Made in Taiwan
<Specification>
Video input signal :NTSC/PAL
Resolution:: 800(W)x400(H)pixels
Brightness:220cd/m2
Opration Voltage: DC12V
Dimension:182(W)x133(H)x35(D)
Weight:2kg
Function:Brightness, Contrast, Saturation          and Hue
Video In terminal : 1(BNC and RCA)
S-Video In terminal :1(Mini Din)
Video Out terminal : 1(BNC and RCA)
AC Adapter :In:AC100V〜AC240V
      Out:DC12V , 1.5A
      Safety standard : UL, PSE
